HDMI 2.1 Hybrid AOC

Vitex Part #: LTH-210P

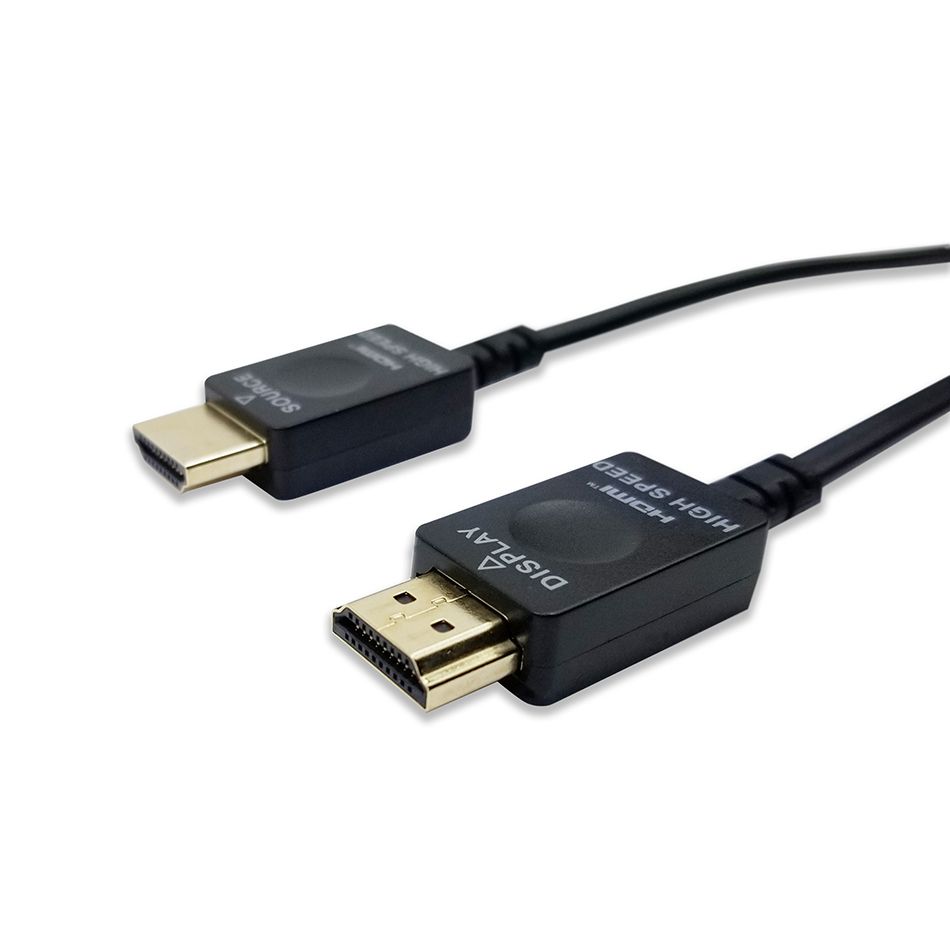

LTH-210P-yyy is Vitex's HDMI Active Hybrid Cable, bridging fiber optics with copper cabling for the best of both worlds. This AOC can send an HDMI 2.1 signal up to 320 feet (100 meters) for crystal clear 4k video and lossless audio wherever your needs are. Utilizing a combination of Copper and Fiber, the cable can extend signal without a power source, allowing it to be the perfect plug-and-play solution.

Features
Specifications
Applications
FAQs
Datasheet

Up to 320 feet (100m) maximum length (Custom Length Available)
Compatible with
HDMI 2.1 standard
Backwards compatible with HDMI 2.0/HDMI 1.4
Supports
HDCP 2.3
Supports
Dynamic HDR , VRR, QMS, QF T, ALLM, DSC
Supports 48Gbps bandwidth with 4Kp50/60/100/120 and 8Kp50/60
Self-detecting function for EDID information
Support eARC up to 100 feet (30m)
No loss of signal "“ delivering crystal clear digital images instantly
Hybrid optical cable with 4 fiber and 7 copper wires
Plug and play The lengths with ATC certificate: 1m, 2m, 3m, 5m, 7.5m, 10m, 12m, 15m, 20m.

Distance	<100m
Connector	HDMI
Cable Length	Up to 100m
Temperature	Commercial (0–70°C)
Extender Type	Cable

Broadcasting Digital Signage Medical Imaging

Q: What is this HDMI 2.1 AOC?
A: The HDMI 2.1 Hybrid AOC is a fiber optic AOC that transmits HDMI 2.1 signals over fiber at distances up to <100m. It maintains full signal quality with zero latency over the fiber link.

Q: What is the maximum distance?
A: This AOC supports distances up to <100m over fiber optic cable.

Q: Does it require external power?
A: Refer to the product specifications and datasheet for power requirements. AOCs are typically powered through the host connectors.

Q: What are typical use cases?
A: Common applications include Broadcasting, Digital Signage, Medical Imaging. Fiber extends reliable HDMI 2.1 connectivity far beyond copper cable limitations.

Q: Is splicing or fiber termination required?
A: No — this AOC is a pre-terminated plug-and-play cable.

Technical Documentation

Access comprehensive technical specifications, mechanical diagrams, and validation reports.

Download Datasheet PDF
