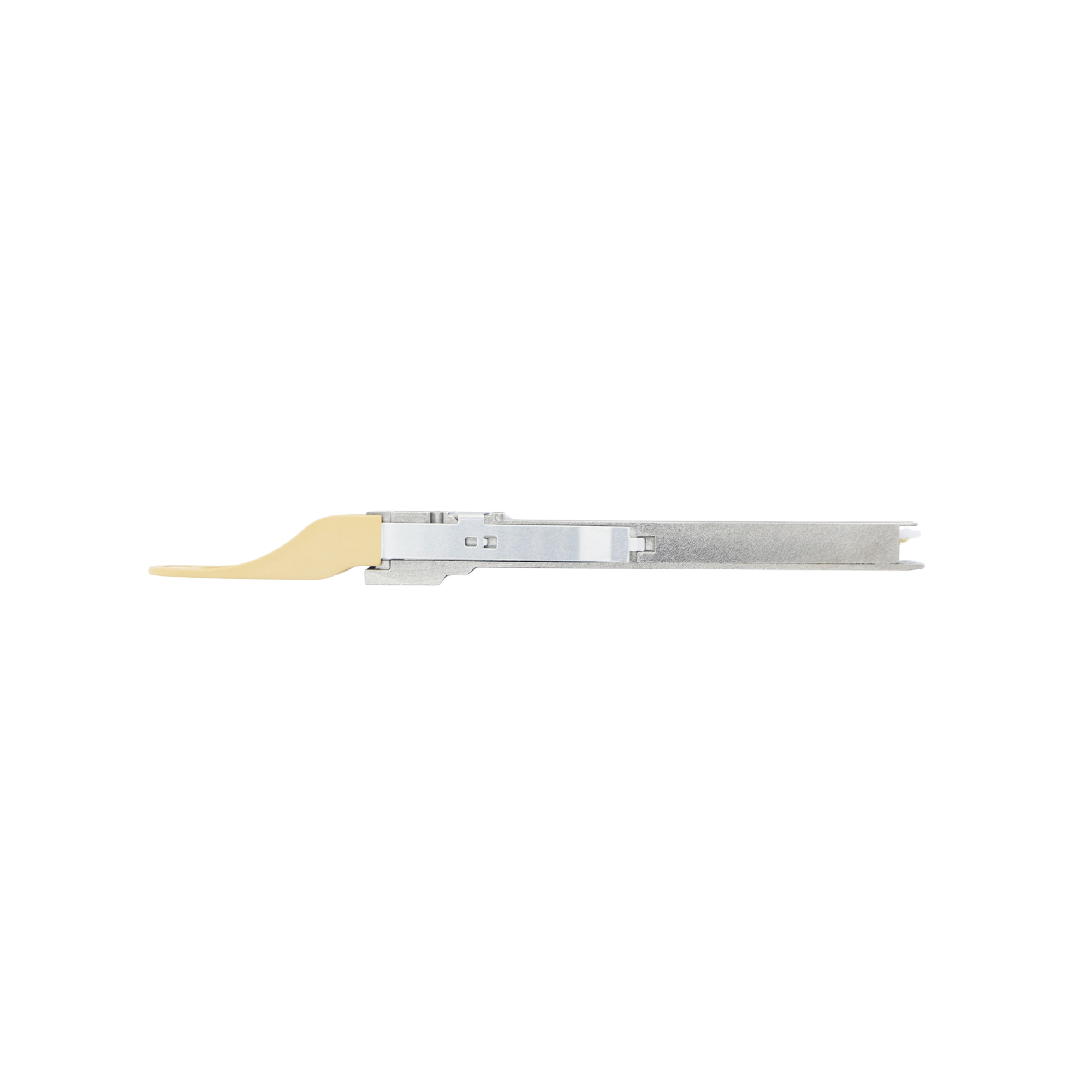

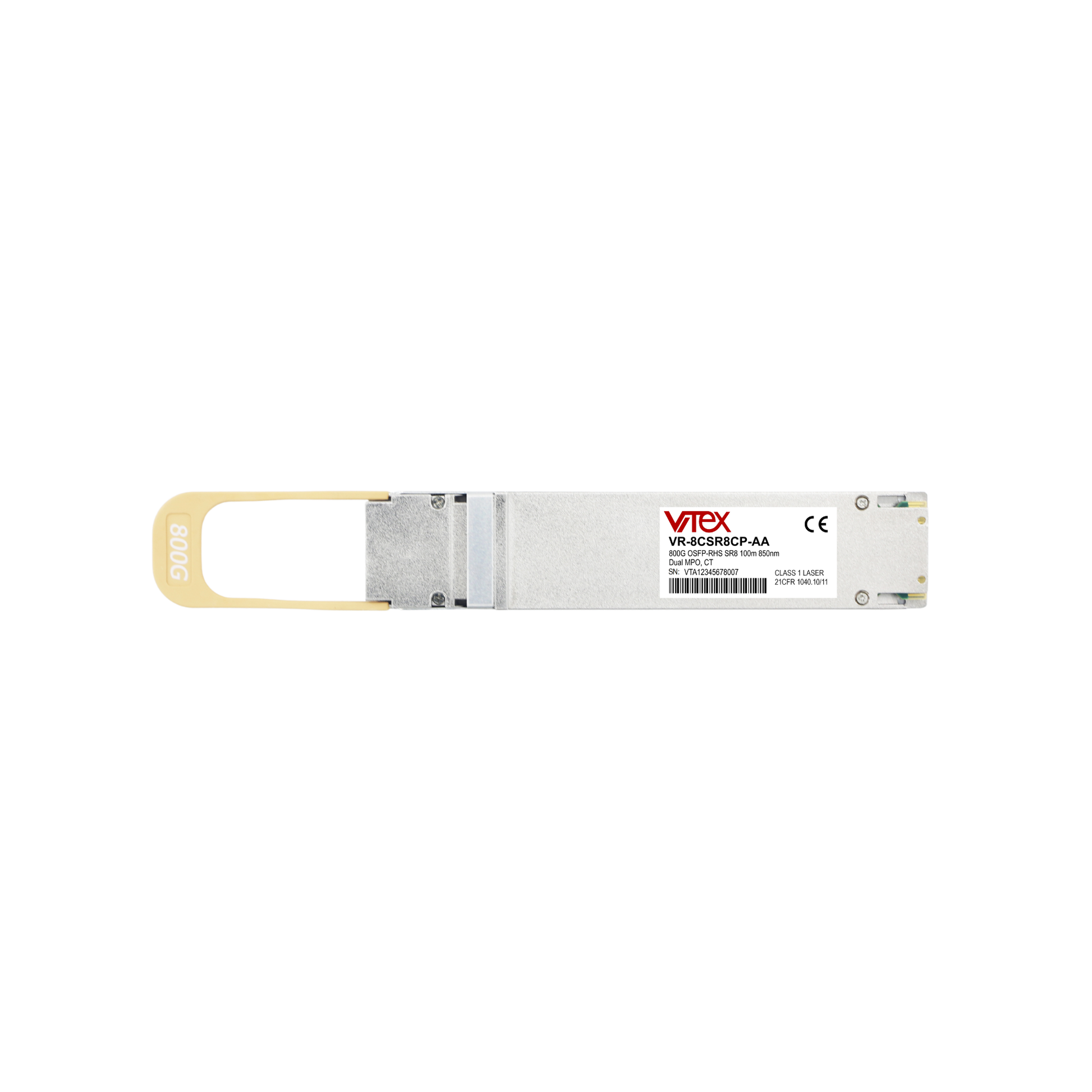

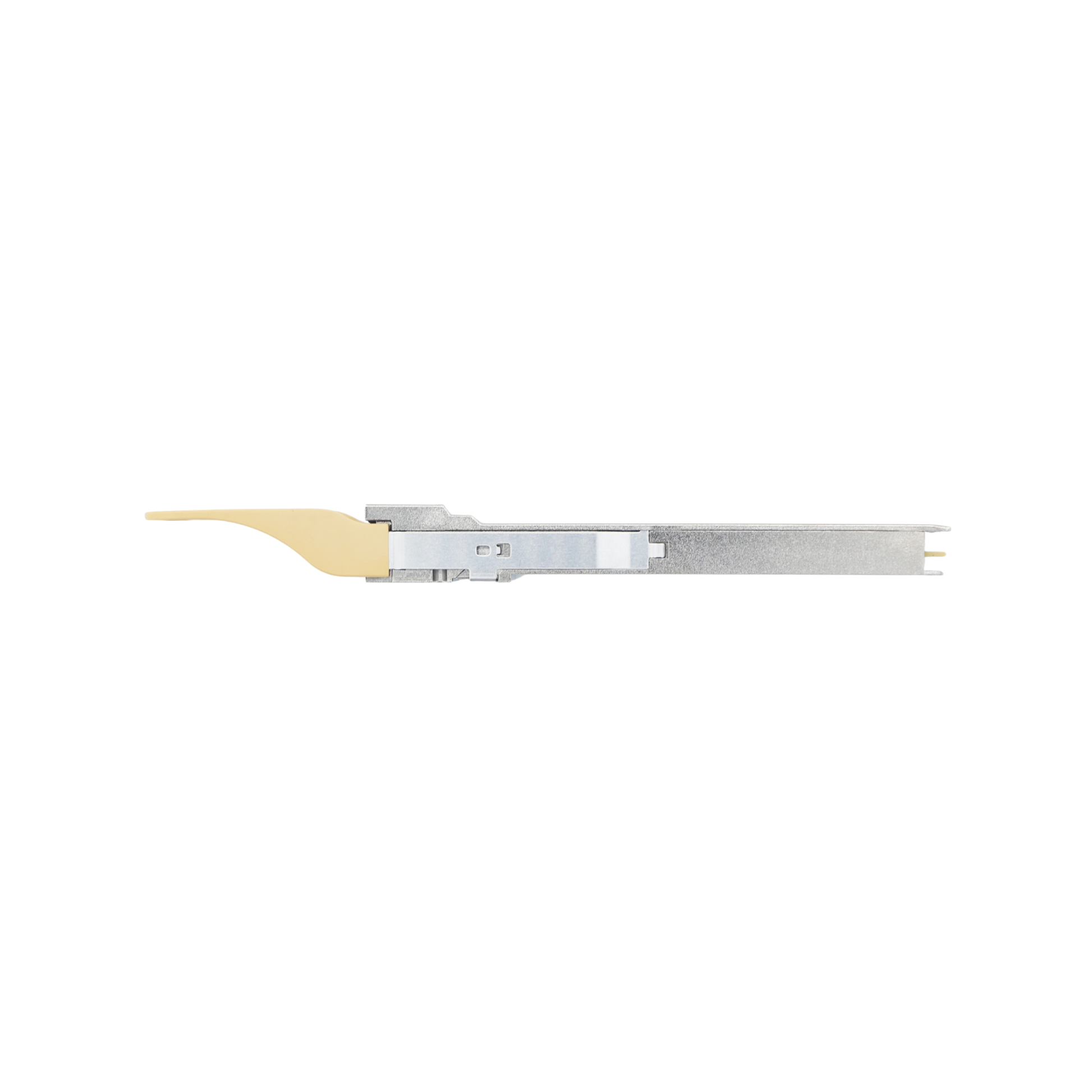

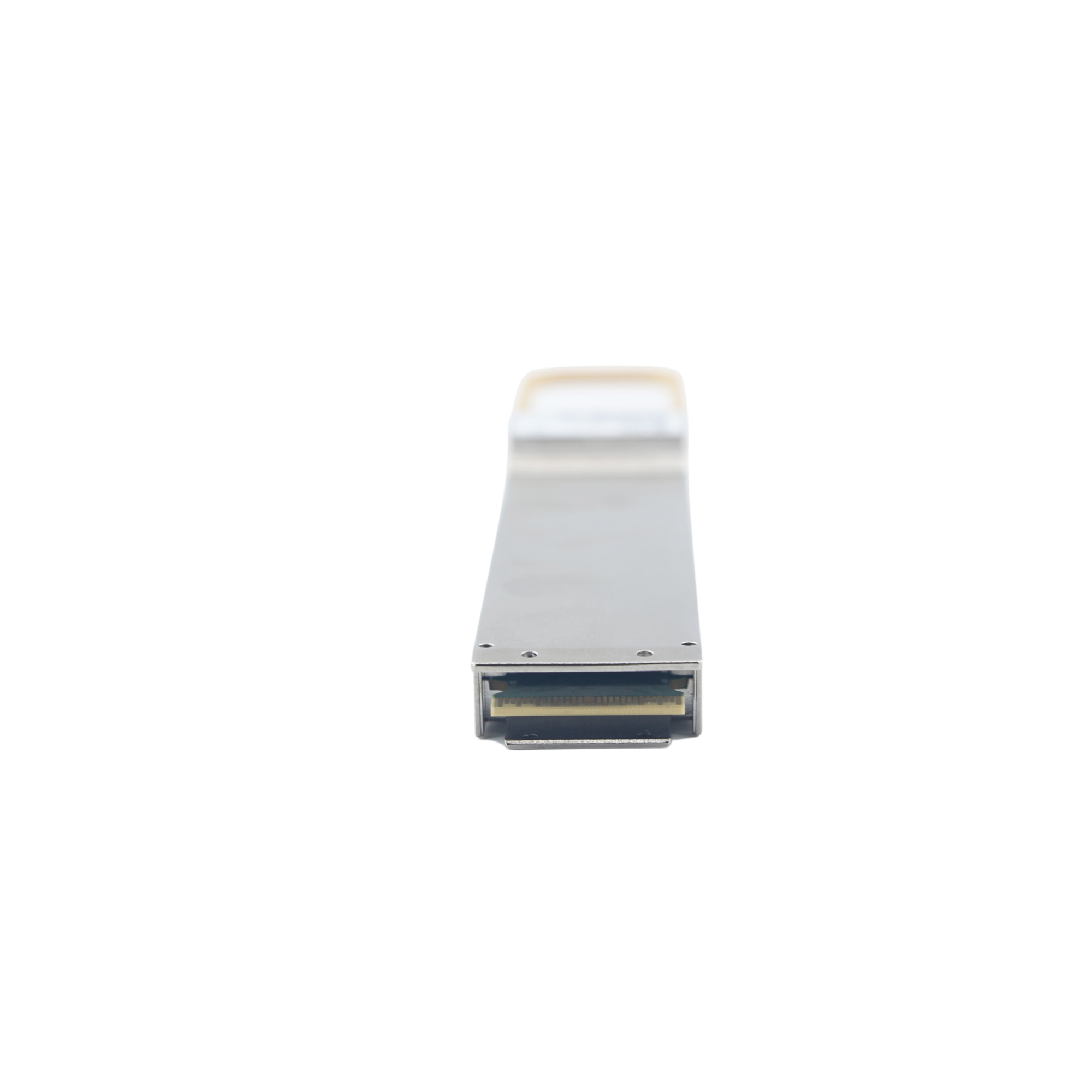

800G OSFP-RHS SR8

Name: 800G OSFP-RHS SR8
Brand: Vitex LLC
SKU: VR-8CSR8CP-AA
Availability: InStock

Vitex Part #: VR-8CSR8CP-AA

The VR-8CSR8CP-AA is a high-performance 800G OSFP-RHS SR8 designed for next-generation data center architectures. It is the ideal solution for AI training clusters, supercomputing, and high-frequency trading environments requiring massive bandwidth.

800G OSFP-RHS SR8 2*MPO12. Fully MSA compliant and TAA compliant options available.

Features
Specifications
Applications
FAQs
Datasheet

Supports 800G Data Rate
Form Factor: OSFP-RHS
Connector: MPO
Commercial Temperature Range (0°C to 70°C)
RoHS Compliant
Hot Pluggable

Category	Optical Transceivers
Form Factor	OSFP-RHS
Data Rate	800G
Wavelength	850nm
Distance	-
Connector	MPO-12
Protocol	InfiniBand, Ethernet
Temperature	Commercial (0–70°C)

InfiniBand HDR/NDR Networks AI Data Centers High Performance Computing (HPC) Enterprise Networking

Q: What is the 800G OSFP-RHS SR8?
A: It is a 800G optical transceiver in the OSFP-RHS form factor, supporting InfiniBand Ethernet with a reach of <100m over Multi-Mode Fiber (MMF).

Q: What is the maximum transmission distance?
A: This transceiver supports up to <100m over Multi-Mode Fiber (MMF) at 850nm.

Q: What connector type does this use?
A: It uses a MPO-12 connector with Multi-Mode Fiber (MMF).

Q: What applications is this designed for?
A: It is designed for InfiniBand HDR/NDR Networks, AI Data Centers, High Performance Computing (HPC), Enterprise Networking.

Q: Is this module compatible with my switch or router?
A: This transceiver is OSFP-RHS MSA compliant, meaning it is designed to work with any platform that supports the OSFP-RHS standard. Contact Vitex engineering to confirm compatibility with your specific hardware.

Technical Documentation

Access comprehensive technical specifications, mechanical diagrams, and validation reports.

Download Datasheet PDF
