400G DR4 QSFP112 SMF 1310nm 500m MPO-12 Ethernet/InfiniBand Transceiver, MSA Compliant

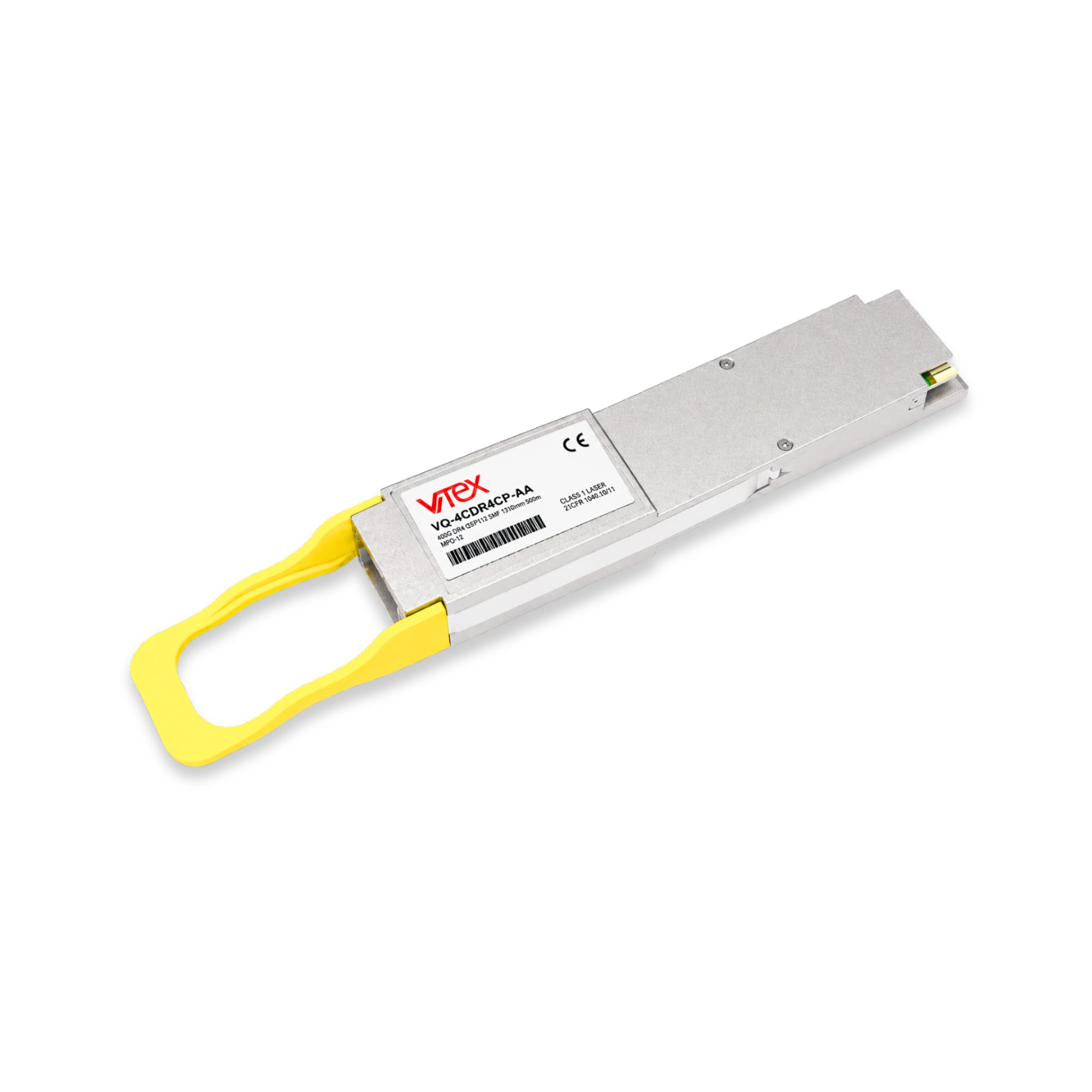

The VQ-4CDR4CP-AA is a 400G QSFP112 DR4 optical transceiver for medium-reach AI data center connections. It supports 4x 100 Gb/s PAM4 parallel lanes over single-mode fiber and delivers 400 Gb/s aggregate throughput up to 500m via an MPO-12 APC connector. The QSFP112 form factor offers the smallest power and thermal footprint at 400G.
Primary use case: NIC-side endpoint of 800G-DR8 to 2x 400G-DR4 breakout topologies from OSFP-based NVIDIA spine switches into ConnectX-7 NICs in 400G mode. Compliant with QSFP112 MSA and IEEE 802.3ck.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Our Team provides custom quotes — typically within one business day.
Request a quote
MSA Compliant
Standards-based, multi-vendor
1.6T & 800G Ready
Next-gen AI fabric optics
Get in Touch
Ship in 2 Days
In stock, ships from NJ, USA
US Engineer Support
Real FAE support, same time zone
- Features
- Specifications
- Applications
- FAQs
- Datasheet
- 400 Gb/s aggregate data rate (4x 100 Gb/s PAM4)
- QSFP112 form factor
- Up to 500m reach over SMF with RS(544,514) FEC
- MPO-12 APC optical interface (8-fiber active)
- EML transmitter and PIN photodiode receiver
- Designed as NIC-side endpoint of 800G-DR8 to 2x 400G-DR4 breakouts
- Compliant with QSFP112 MSA, IEEE 802.3ck, CMIS 5.0
- Full DDM telemetry
- Single 3.3 V supply; Maximum power 10 W
- Commercial temperature 0 to 70 degC
- RoHS 2 and REACH compliant
- US-based engineering support from New Jersey HQ
| Category | Optical Transceiver |
|---|---|
| Form Factor | QSFP112 |
| Data Rate | 400 Gb/s (4x 100 Gb/s PAM4) |
| Wavelength | 1310 nm |
| Fiber Type | Single-Mode Fiber (SMF) |
| Distance | 500m |
| Connector | MPO-12 APC (female on cable side) |
| Protocol | Ethernet, InfiniBand |
| Optics | EML TX / PIN PD RX |
| FEC | RS(544,514) host-side |
| Management | CMIS 5.0, DDM |
| Power Supply | 3.3 V single supply |
| Max Power | 10 W max |
| Temperature | Commercial (0 to 70 degC) |
| Compliance | QSFP112 MSA, IEEE 802.3ck, CMIS 5.0, RoHS 2 |
Q: What is the 400G QSFP112 DR4 used for?
A: Most commonly as the NIC-side endpoint of an 800G-DR8 to 2x 400G-DR4 breakout from an OSFP-based switch into ConnectX-7 NICs in 400G mode. It also works for direct 400G-to-400G server-to-server or switch-to-switch links over SMF up to 500m.
Q: When should I choose DR4 vs FR4?
A: DR4 uses 4 parallel single-mode fibers (MPO-12) for 500m reach at lower per-port cost. FR4 uses CWDM over a single duplex LC fiber pair for 2km reach with simpler fiber management. DR4 is more common in compact AI clusters; FR4 is used for inter-hall connections.
Q: Is this validated on NVIDIA switches directly?
A: NVIDIA Spectrum and Quantum 400G+ switches use the OSFP form factor. QSFP112 is the NIC-side option for ConnectX-7 in 400G mode. For switch-side 400G on NVIDIA, use the Vitex 400G OSFP-RHS DR4 instead.
Q: What fiber and patch cable do I need?
A: Standard single-mode fiber with MPO-12 APC connectors. Transceiver ports are male (pinned), so patch cables must be female (unpinned). For 800G-DR8 to 2x 400G-DR4 breakouts, use a SMF MPO-12 to 2x MPO-12 breakout assembly.
Q: What is the typical use case in an AI cluster?
A: Spine switch (Vitex 800G DR8 OSFP) breaks out to two server NICs (Vitex 400G DR4 QSFP112) over a single MPO-12 to 2x MPO-12 SMF breakout cable. Common in GPU pods where the leaf switch sits 50-500m from the GPU racks.
Q: What is the link power budget at 500m?
A: 400G-DR4 per-lane budget is ~4.0 dB. A 500m run consumes ~0.2 dB of fiber attenuation plus ~0.7 dB across two MPO-12 APC connectors. Total ~0.9 dB - very comfortable budget. Always clean endfaces before mating.
Q: Why source 400G optics from Vitex?
A: Contact Vitex engineering for details on this configuration.
