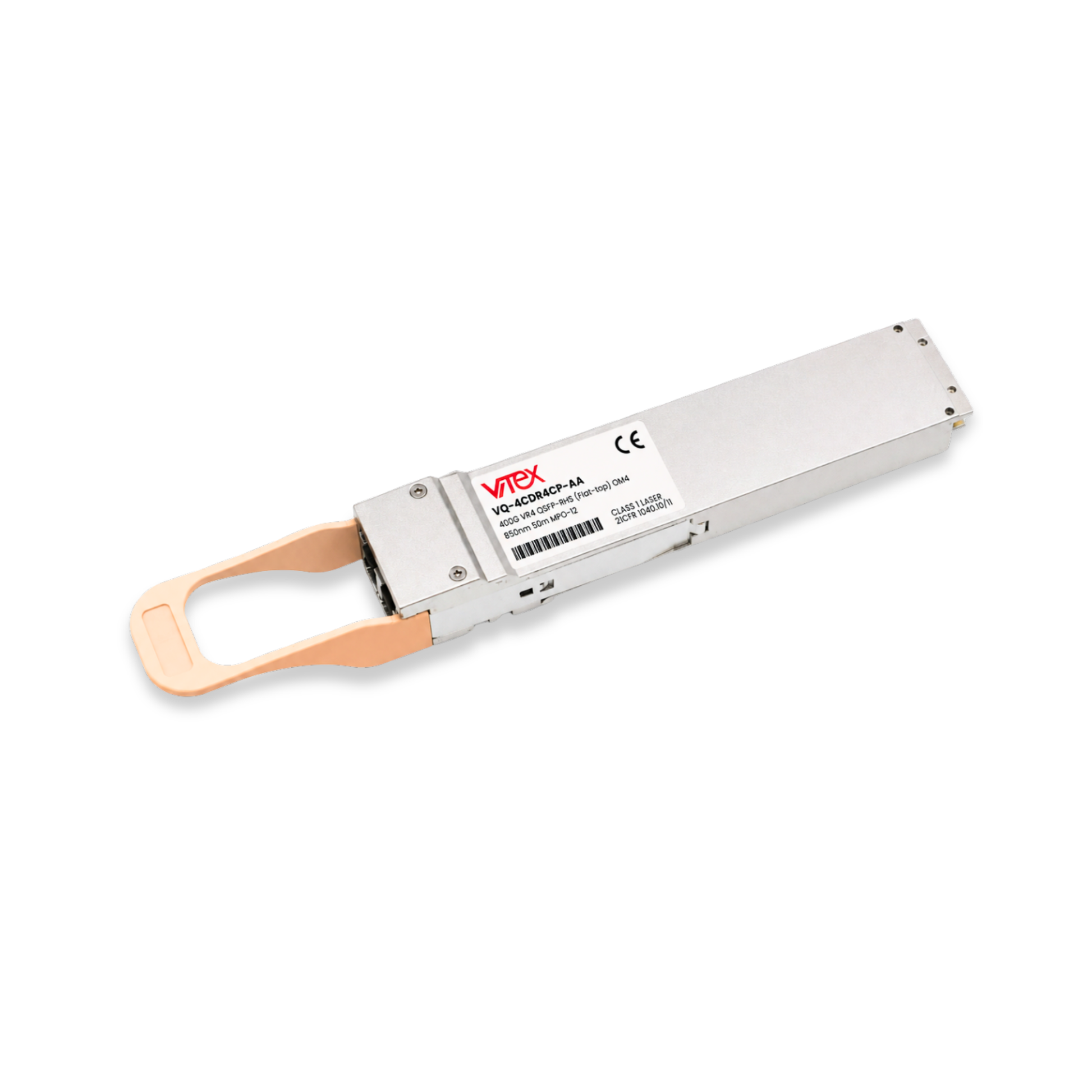

400G VR4 OSFP-RHS (Flat-top) OM4 850nm 50m MPO-12 Ethernet/InfiniBand Transceiver, MSA Compliant
The VR-4CVR4CP-AA is a 400G OSFP-RHS (Riding Heat Sink, flat-top) VR4 optical transceiver designed for NVIDIA InfiniBand fabrics and liquid-cooled GPU systems where the host platform supplies external cooling rather than relying on a module-integrated heat sink. It supports 4x 106.25 Gb/s PAM4 lanes over multi-mode fiber with VCSEL technology, delivering 400 Gb/s aggregate throughput up to 50m on OM4 (30m on OM3) via an MPO-12 APC connector.
Reference platforms: NVIDIA Quantum-2 (QM9700/QM9790) and Quantum-X800 (Q3400/Q3200) InfiniBand switches, plus ConnectX-7 / BlueField-3 endpoints in DGX H100 Cedar7 GPU systems. Compliant with OSFP MSA and IEEE 802.3ck.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Our Team provides custom quotes — typically within one business day.
Request a quote
MSA Compliant
Standards-based, multi-vendor
1.6T & 800G Ready
Next-gen AI fabric optics
Get in Touch
Ship in 2 Days
In stock, ships from NJ, USA
US Engineer Support
Real FAE support, same time zone
- Features
- Specifications
- Applications
- FAQs
- Datasheet
- 400 Gb/s aggregate data rate (4x 106.25 Gb/s PAM4)
- OSFP-RHS (Riding Heat Sink / flat-top) form factor
- Up to 50m on OM4 / 30m on OM3 multi-mode fiber
- MPO-12 APC optical interface
- VCSEL transmitter and PIN photodiode receiver
- Designed for NVIDIA Quantum-2, Quantum-X800, Spectrum-4, Spectrum-X800
- Validated for DGX H100 Cedar7 GPU systems
- Compliant with OSFP MSA, IEEE 802.3ck, CMIS 5.0
- Full DDM telemetry over two-wire serial interface
- Single 3.3 V supply; Maximum power 8.5 W
- Commercial temperature 0 to 70 degC; RoHS 2
- US-based engineering support from New Jersey HQ
| Category | Optical Transceiver |
|---|---|
| Form Factor | OSFP-RHS (Riding Heat Sink / Flat-top) |
| Data Rate | 400 Gb/s (4x 106.25 Gb/s PAM4) |
| Wavelength | 850 nm |
| Fiber Type | OM4 / OM3 Multi-Mode Fiber |
| Distance | 50m (OM4) / 30m (OM3) |
| Connector | MPO-12 APC (female on cable side) |
| Protocol | Ethernet, InfiniBand |
| Optics | VCSEL TX / PIN PD RX |
| FEC | RS(544,514) host-side |
| Management | CMIS 5.0, DDM |
| Power Supply | 3.3 V single supply |
| Max Power | 8.5 W max |
| Temperature | Commercial (0 to 70 degC) |
| Compliance | OSFP MSA, IEEE 802.3ck, CMIS 5.0, RoHS 2 |
Q: What is the difference between OSFP-IHS and OSFP-RHS?
A: OSFP-IHS (Integrated Heat Sink, "finned-top") has a heat sink built onto the module and is used in air-cooled Ethernet switches that rely on the module to dissipate heat. OSFP-RHS (Riding Heat Sink, "flat-top") has no module-integrated heat sink - the host platform provides external cooling. RHS is used in NVIDIA Quantum, DGX, and liquid-cooled platforms.
Q: Which NVIDIA platforms is this validated on?
A: NVIDIA Quantum-2 (QM9700/QM9790), Quantum-X800 (Q3400/Q3200), Spectrum-X800 (SN6000), Spectrum-4 (SN5600) with ConnectX-7. Also validated for DGX H100 Cedar7 GPU connections and BlueField-3 endpoints.
Q: Can I use OSFP-RHS in an air-cooled Ethernet switch?
A: Generally no. Air-cooled Ethernet switches require the IHS (finned-top) variant because the module itself must dissipate heat. Using RHS without external cooling can cause overheating and link errors. Always match the form factor to the platform requirement.
Q: When should I choose VR4 over DR4?
A: VR4 for 50m or shorter on multi-mode fiber (typical in compact AI clusters and DGX pods). DR4 for 500m on single-mode fiber (typical in row-to-row InfiniBand fabrics). Match to your run length and existing fiber infrastructure.
Q: What fiber and connector should I use?
A: OM4 multi-mode fiber, MPO-12 APC connectors, Type B polarity, female (unpinned) on both ends. See the Vitex M12FOM4-B2 patch cable for direct-mate compatibility.
Q: How does this compare to NVIDIA-branded 400G optics?
A: Same optical performance and form factor, validated on the same NVIDIA platforms. Vitex delivers in.
Q: What is the typical InfiniBand use case?
A: NDR (400G) InfiniBand fabric: NVIDIA Quantum-2 / Quantum-X800 switch to ConnectX-7 NIC in a DGX or HGX system, MPO-12 APC OM4 multi-mode fiber between switch and server, 50m or shorter run.
