1.6T OSFP 2*FR4

Name: 1.6T OSFP 2*FR4
Brand: Vitex LLC
SKU: VO-1TFR8CS-AA
Availability: InStock

Vitex Part #: VO-1TFR8CS-AA

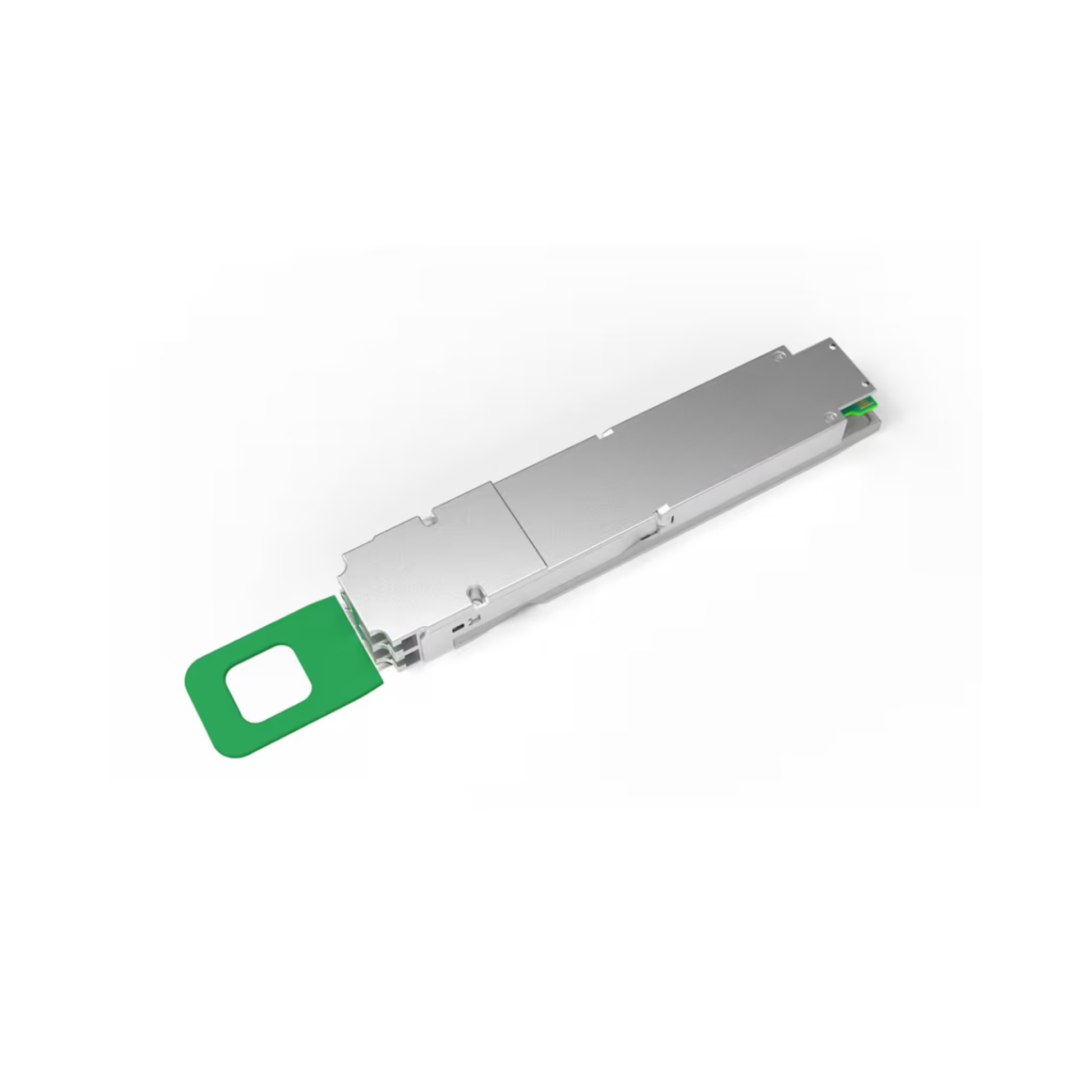

The VO-1TFR8CS-AA is a 1.6T OSFP 2×FR4 transceiver optimized for longer?reach data center, AI, and cloud interconnects. It converts 8×106.25 GBd PAM4 electrical lanes to 8 optical lanes at 113.4375 GBd, delivering 1.6Tb/s over SMF up to 2km. The module uses an OSFP Type 2 housing with dual Duplex?LC connectors and LAN?WDM wavelengths, supporting 1.6T Ethernet, InfiniBand, and high?capacity spine/leaf links.

1.6T OSFP 2×FR4 2km, LAN?WDM SMF, dual LC.

Features
Specifications
Applications
FAQs
Datasheet

Supports 1.6T aggregate data rate
Form Factor: OSFP Type 2
Up to 2km reach over SMF
Connector: Dual Duplex-LC (2×FR4)
8x 106.25 GBd PAM4 electrical lanes, 8x 113.4375 GBd optical lanes
Single 3.3V power supply, low power consumption
Commercial temperature range (0–70°C)
Compliant with OSFP MSA and IEEE P802.3dj
CMIS 5.3 management interface
RoHS 2 compliant

Category	Optical Transceivers
Form Factor	OSFP Type 2
Data Rate	1.6T
Wavelength	LAN-WDM (1271/1291/1311/1331nm)
Distance	2km
Connector	Dual Duplex-LC (2×FR4)
Protocol	Ethernet, InfiniBand
Temperature	Commercial (0–70°C)

AI Data Centers High Performance Computing (HPC)

Q: What is the 1.6T OSFP 2*FR4?
A: It is a 1.6T optical transceiver in the OSFP form factor with a reach of 2km over Single-Mode Fiber (SMF).

Q: What is the maximum transmission distance?
A: This transceiver supports up to 2km over Single-Mode Fiber (SMF) at 1310nm.

Q: What connector type does this use?
A: It uses a LC Duplex connector with Single-Mode Fiber (SMF).

Q: What applications is this designed for?
A: It is designed for AI Data Centers, High Performance Computing (HPC).

Q: Is this module compatible with my switch or router?
A: This transceiver is OSFP MSA compliant, meaning it is designed to work with any platform that supports the OSFP standard. Contact Vitex engineering to confirm compatibility with your specific hardware.

Technical Documentation

Access comprehensive technical specifications, mechanical diagrams, and validation reports.

Download Datasheet PDF
